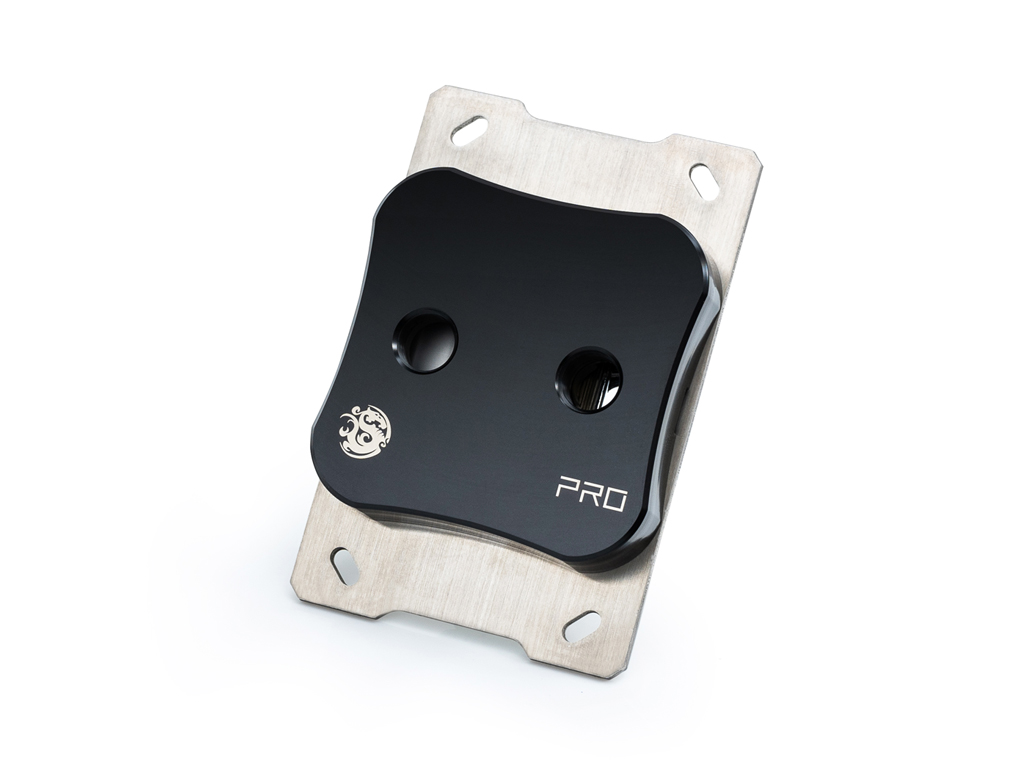

Bitspower CPU Block Summit M Pro - Black (AMD AM5,AM4)

Bitspower CPU Block Summit M Pro - Black ( AMD ver. ) is an efficient solution for AMD CPU water cooling. Including brackets and accessories for AMD platforms, this CPU block is all you’ll need to keep your processor from overheating.

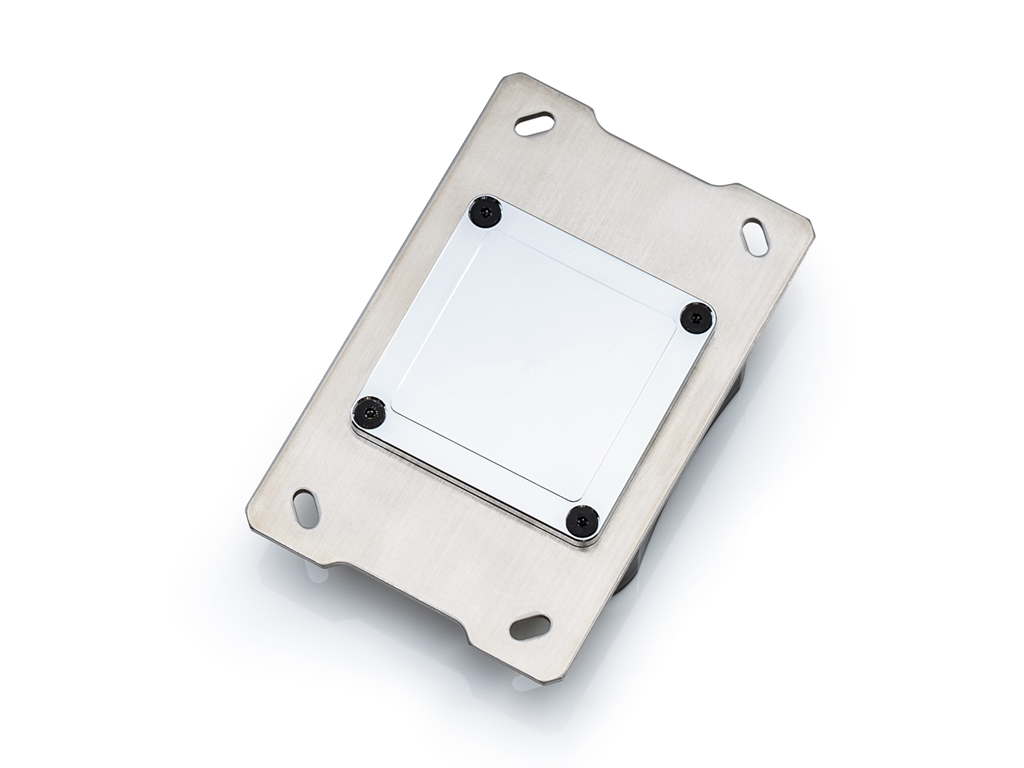

In order to make heat exchange as efficient as possible, the copper base plate features a layer of 0.3mm fins/channels to increase the surface area, which is essential for heat dissipation. Bitspower water injection design brings a high flow of coolant directly on top of these fins for immediate cooling which is essential for optimal heat dissipation.



Thread : G1/4" x 2



Included :
1Set of BP-CPUMPROA-BK
1Set of BPA-TP1-2.5G
1Set of Mounting Screws/Accessories

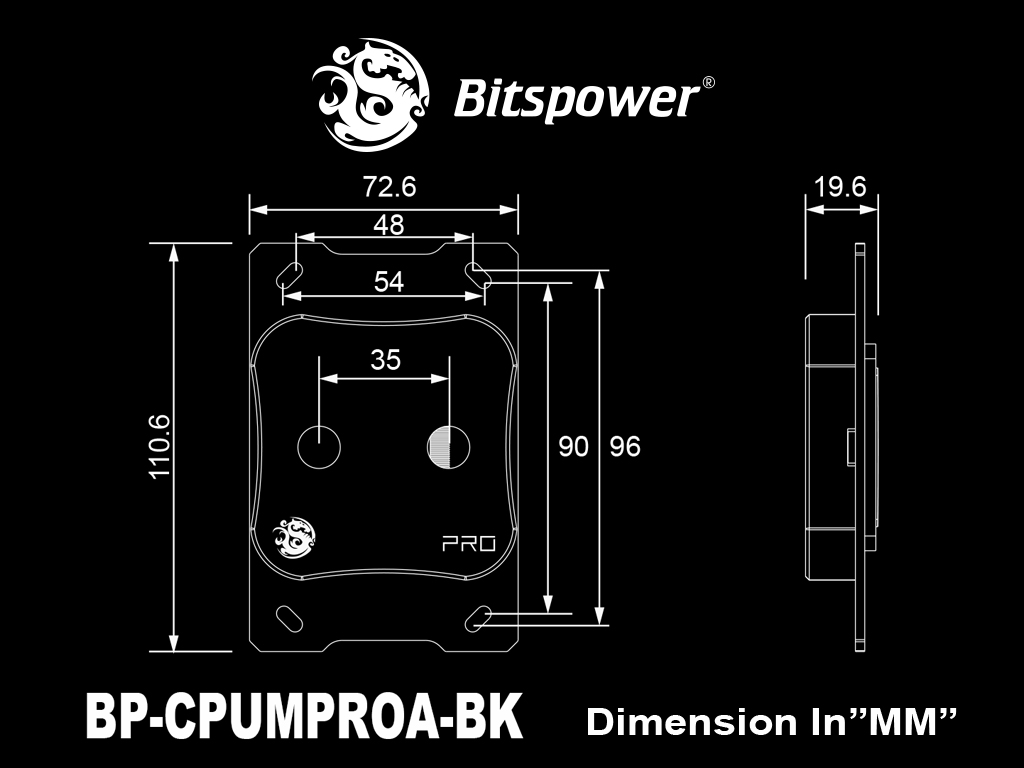

Dimension(LxWxH) : 110.6x72.6x19.6 MM

BrandProduct
AMDSOCKET AM4
AMDSOCKET AM5


*** Bitspower reserves the right to change the product design and interpretations. These are subject to change without notice. Product colors and accessories are based on the actual product. ***
*** From 15th March 2018, all of our installation guides will be provided electronically via an easy-to-use QR code attached to the packaging. ***
*** Before filling in the water, please make sure all the components are installed correctly. To prevent any leakage which may damage the PC components, please perform a 24-hour leaking test with only the pump connected to the power supply. ***
*** When using the leak tester on a water cooling loop, in order to avoid product damage due to excessive pressure, the input pressure should not exceed 0.5kg/cm2 (bar), and do not over 30 second. The leak tester must not be used when there is water in the loop or when the pump is running. If the product is damaged due to excessive pressure or incorrect use, Bitspower's product warranty will be null and void, and the cost of any damage to the hardware will be borne by the customer. ***
Last updated : 2024-11-20 11:40:26

Write a review

Please login or register to review

Bitspower CPU Block Summit M Pro - Black (AMD AM5,AM4)

  • Brand: Bitspower
  • Product Code: BP-CPUMPROA-BK
  • UPC: 885488069028
  • EAN: 4712914789020
  • Availability: In Stock
  • TWD 2,400 ( Tax excl. )
