Bitspower Brizo VGA Water Block for ASUS ROG Strix Radeon RX 5700 XT

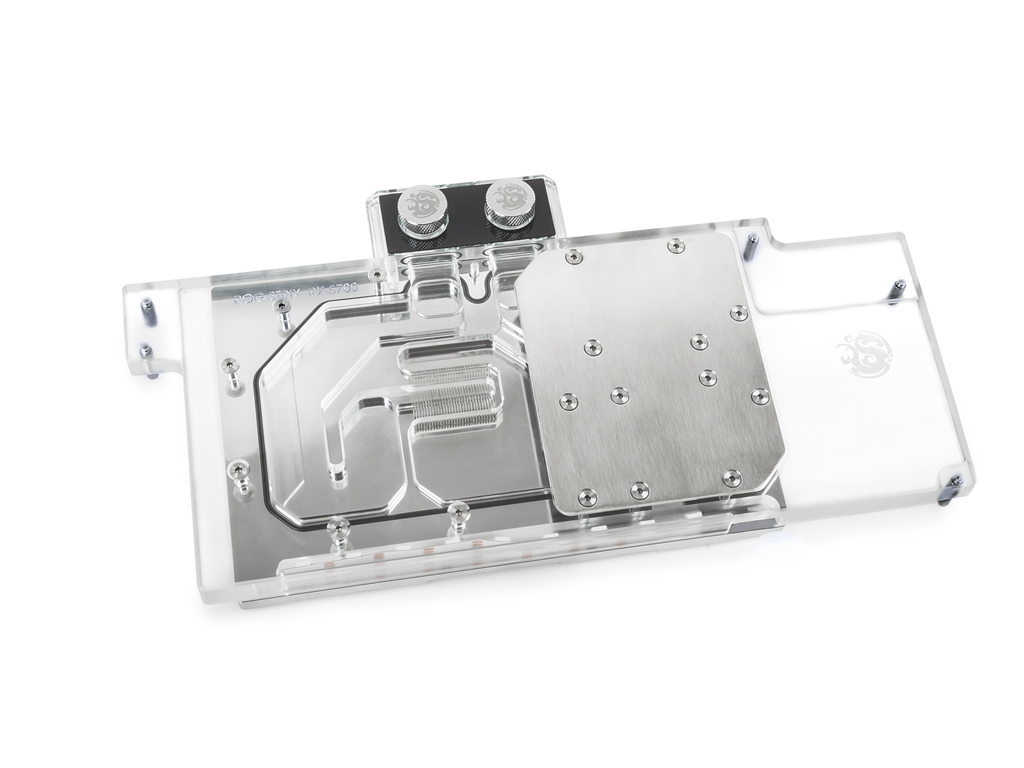

The Bitspower Brizo VGA water blocks are out and ready for the ASUS ROG Strix Radeon RX 5700 XT graphics cards. The Brizo unique design will keep your graphics card performing at maximum power while making sure it doesn’t overheat. With its clear see through design and brushed silver colored plate, the Brizo block brings elegance and style to your PC build.

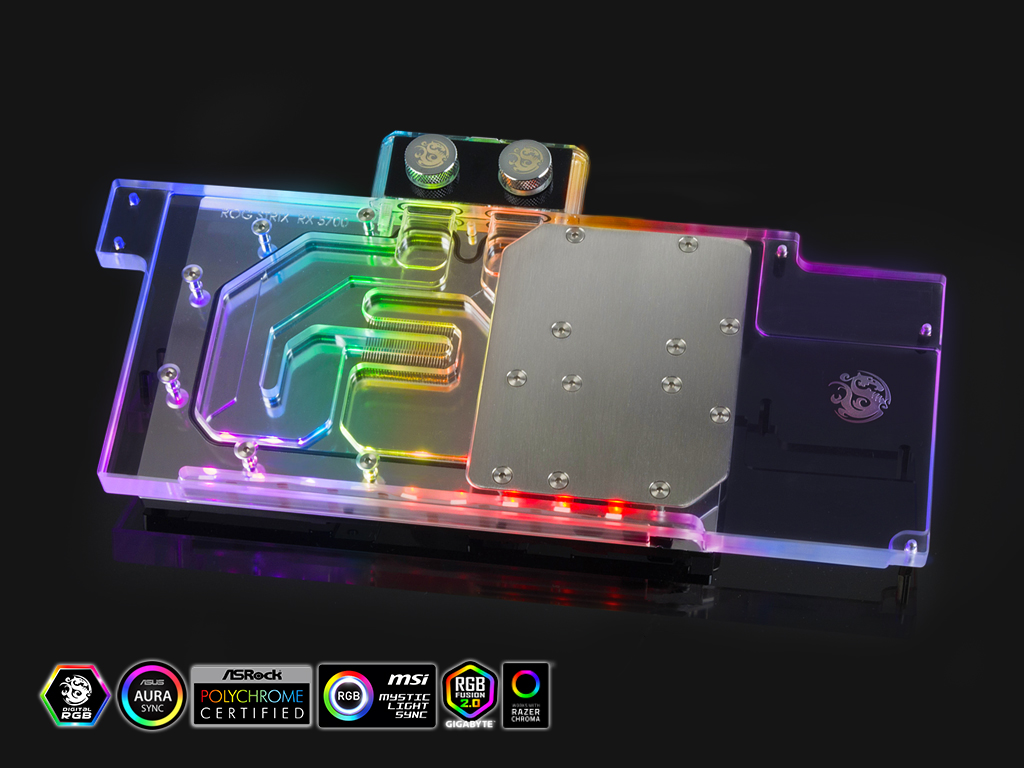

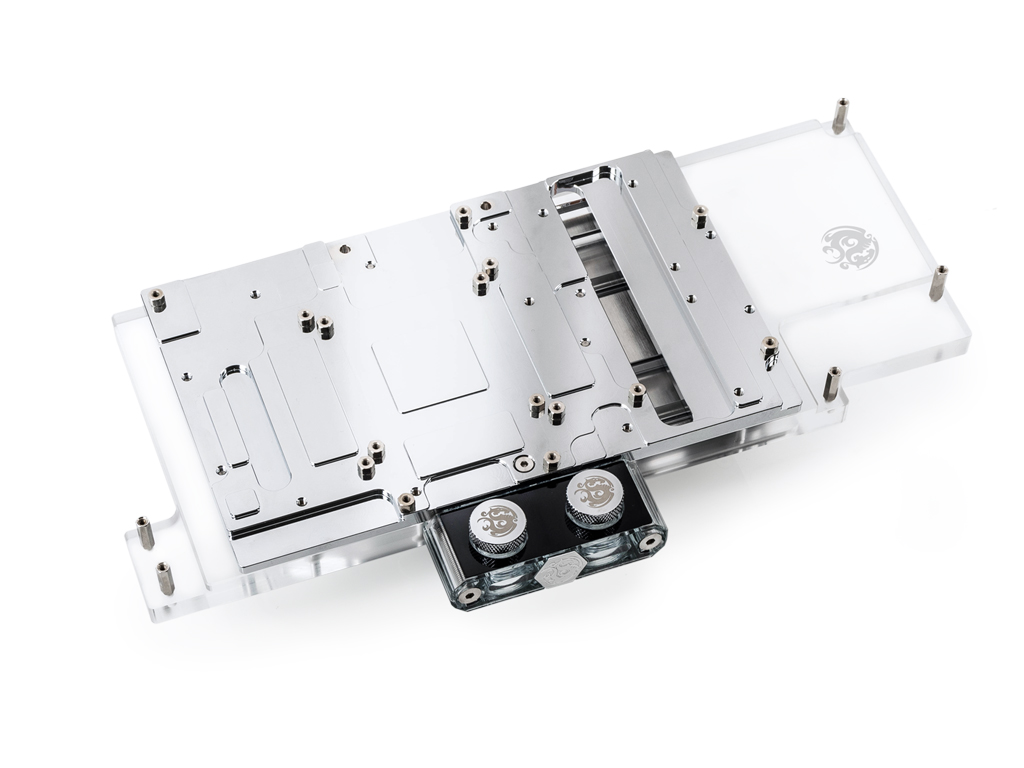

Covering the full length of the card, the water block is layered with a nickel and chromium plated copper base plate that is meticulously carved to allocate the most contact over the GPU and VRM area. The top layer is made of durable acrylic equipped with a Bitspower Digital RGB LED strip that is sure to make your system looks amazing.

Thread : G1/4" x 4

LED Color : Digital RGB
LED Strip Management By Bitspower Digital RGB And Certified By ASUS AURA Sync, GIGABYTE RGB Fusion, MSI Mystic Light Sync, ASRock Polychrome and Razer Chroma

Included :
1set of BP-VG5700XTST
1set of Thermal PAD
1set of Mounting Screws/Accessories

Compatibility :
ASUS ROG Strix Radeon RX 5700 XT
ASUS ROG Strix Radeon™ RX 5600 XT
ASUS ROG Strix Radeon™ RX 5700 OC

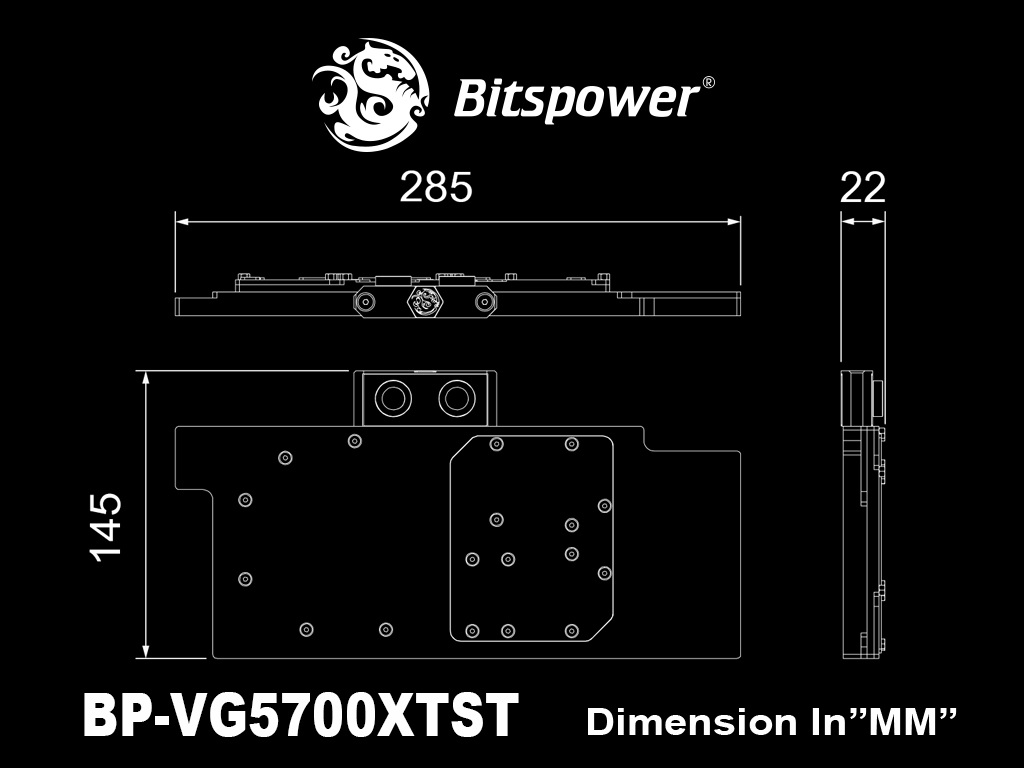

Dimension(LxWxH) : 285x145x22 MM

If there aren’t enough DRGB headers on the motherboard, you can use the "Bitspower Digital RGB Multi Function Controller", which is available for purchase via the link below:
https://shop.bitspower.com/index.php?route=product/product&product_id=7044


I wanna show off, but what's the support I'd need?

◆DRGB

The end of power supply is 3PIN. The sequence is +/D/↓ (some motherboards are shown +5V/D/↓, and the plug is like 4PIN but the 3rd PIN is empty). Please plug in the corresponding direction of motherboard, controller or the wire integrator for one to many. If choosing the motherboard as the power supply, the light effect can be synchronize with MB.
