BP-WBV1060RD-H-RGB

Description
Reviews (0)

Download Installation Guide (All)

Term of warranty

Q&A

Features :
1. Designed for Nvidia GTX 1060 Reference VGA Card.
2. Direct-Flow Design on Inlet/Outlet.
3. TOP Cover Made of Acrylic and Stainless.
4. Block Base Made of C1100.
5. Bottom High Durability Nickel Finished in Shining Silver.

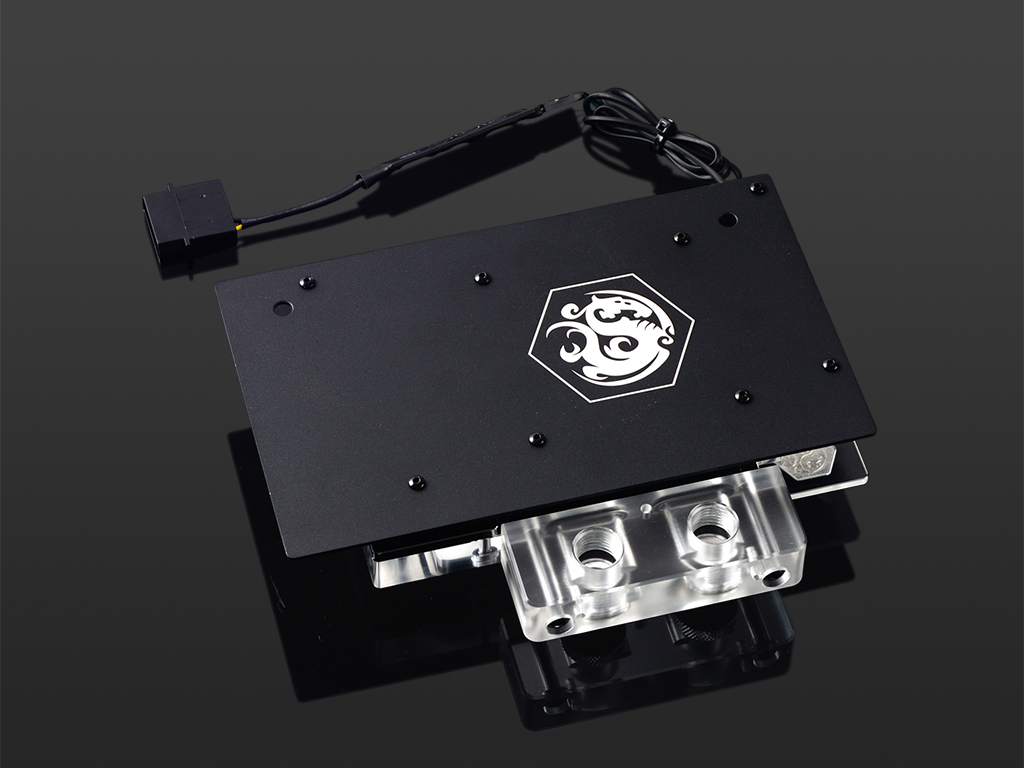

6. Bitspower Back-Plane Included.
7. RoHS Compliant.

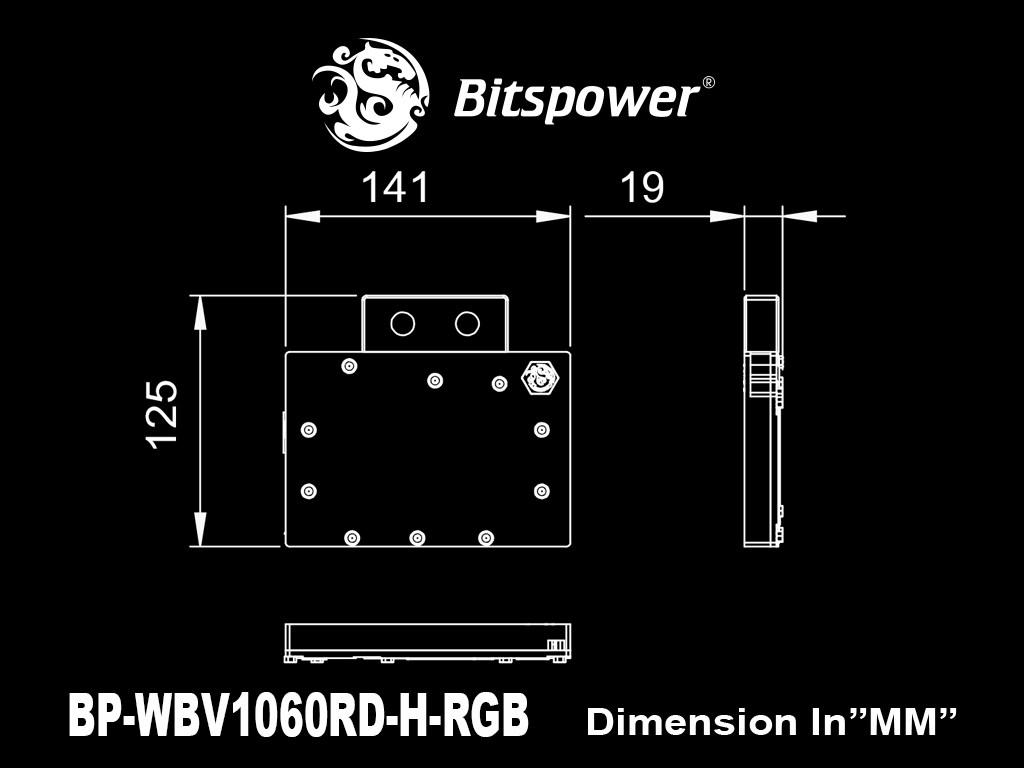

Dimension ( LxWxH ) : 141x125x19 MM (Out-Line)
Thread : G1/4" x 2

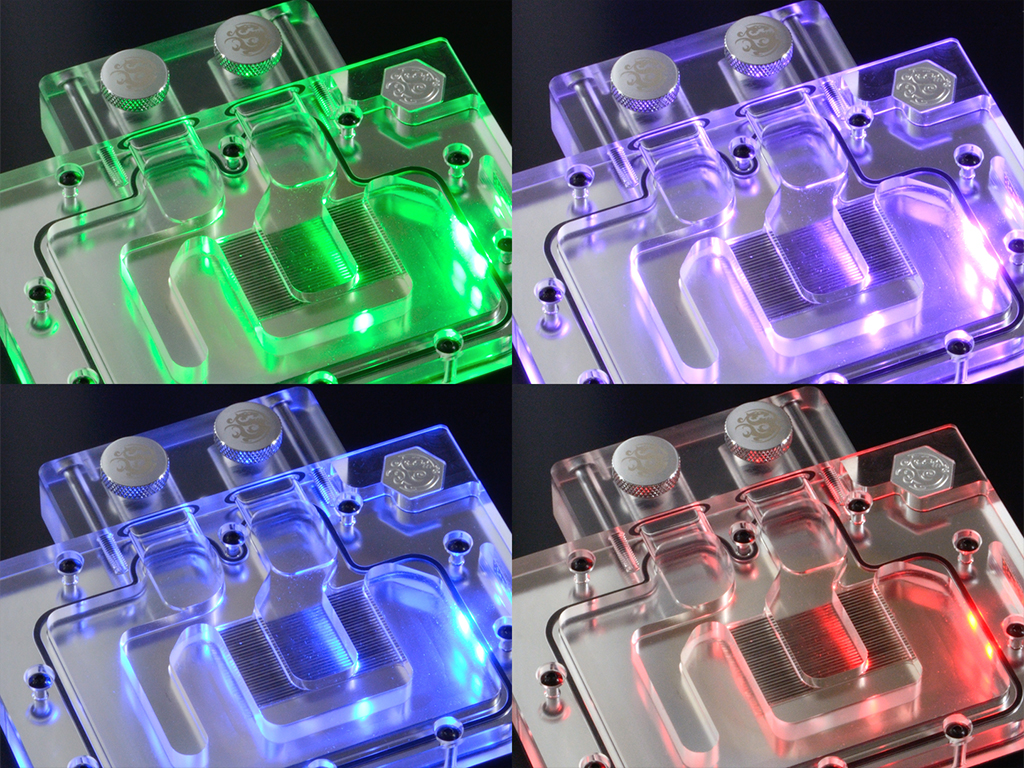

LED Color : RGB

Included :
1. Fujipoly Thermal PAD Included.
(Please Reference the Installation Guide.)
2. Stop Fitting x 2PCS.
3. Backup O-Ring x 1Set.
4. Mounting Screws/Accessories.
5. Bitspower Backplane x 1PCS.
6. RGB LED x 1Set.
7. RGB Mini Controller x 1PCS.

Compatibility :
Nvidia GTX 1060 Reference

*** Bitspower reserves the right to change the product design and interpretations. These are subject to change without notice. Product colors and accessories are based on the actual product. ***

*** From 15th March 2018, all of our installation guides will be provided electronically via an easy-to-use QR code attached to the packaging. ***

*** Before filling in the water, please make sure all the components are installed correctly. To prevent any leakage which may damage the PC components, please perform a 24-hour leaking test with only the pump connected to the power supply. ***

*** When using the leak tester on a water cooling loop, in order to avoid product damage due to excessive pressure, the input pressure should not exceed 0.5kg/cm2 (bar), and do not over 30 second. The leak tester must not be used when there is water in the loop or when the pump is running. If the product is damaged due to excessive pressure or incorrect use, Bitspower's product warranty will be null and void, and the cost of any damage to the hardware will be borne by the customer. ***

Last updated : 2024-08-01 09:20:02

Write a review

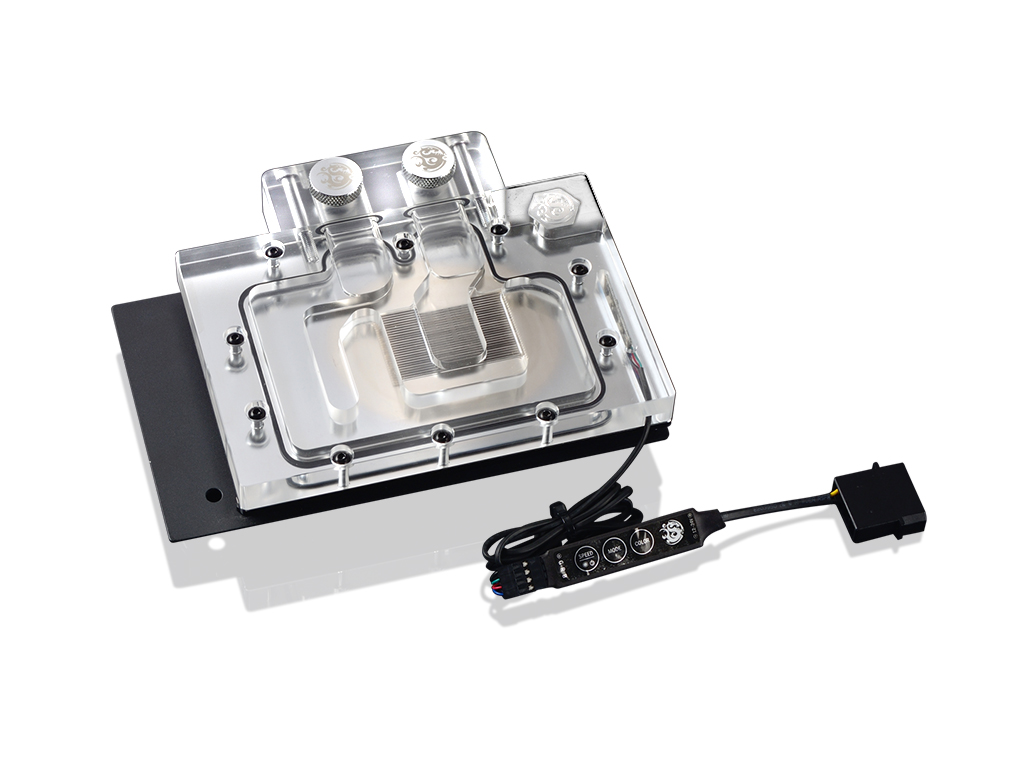

Bitspower Nvidia GTX 1060 Reference Acrylic (Clear)

TWD 2,925 ( Tax excl. )

Contact sales

Available Options
