Bitspower Nebula VGA Water Block For GALAX GeForce RTX 4090 HOF

Bitspower Nebula VGA Water Block for GALAX GeForce RTX 4090 HOF, designed for the GALAX GeForce RTX 4090 HOF series graphic cards, has been specifically engineered to provide the best temperature control while also keeping the aesthetic elegance that Bitspower is known for.

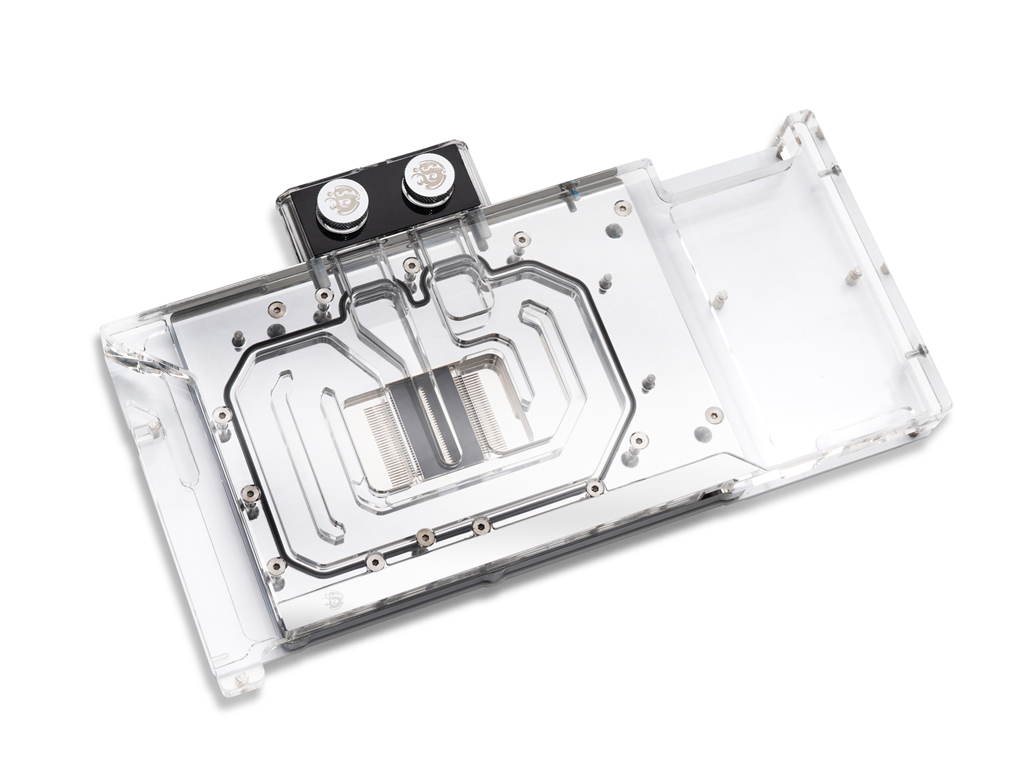

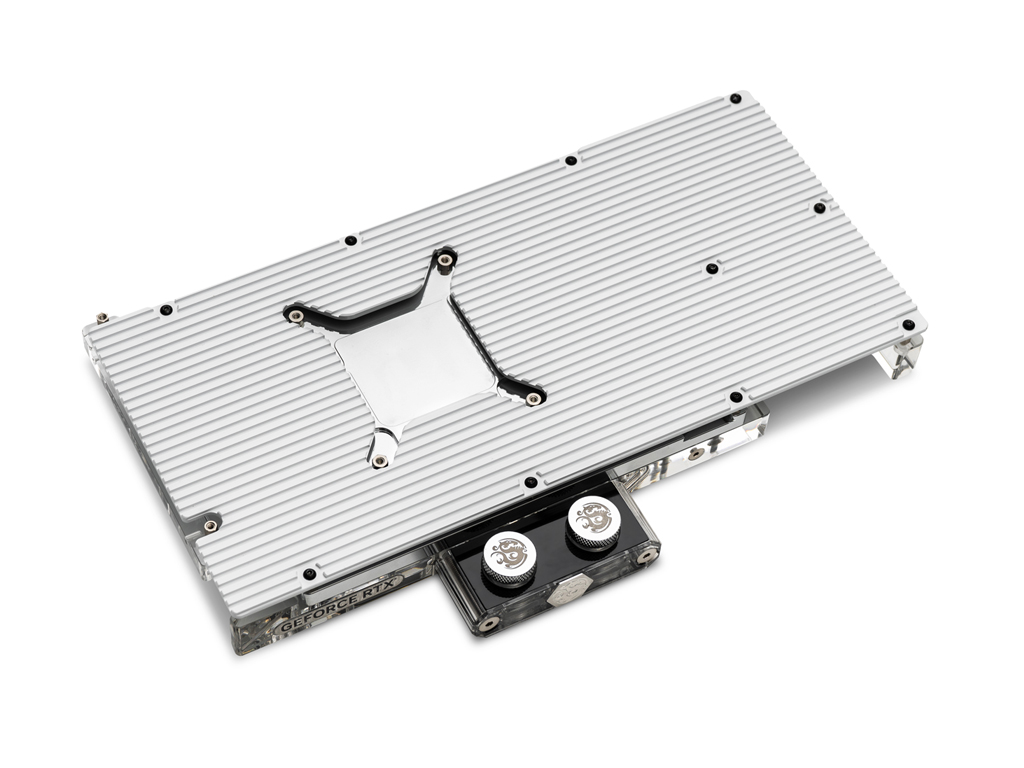

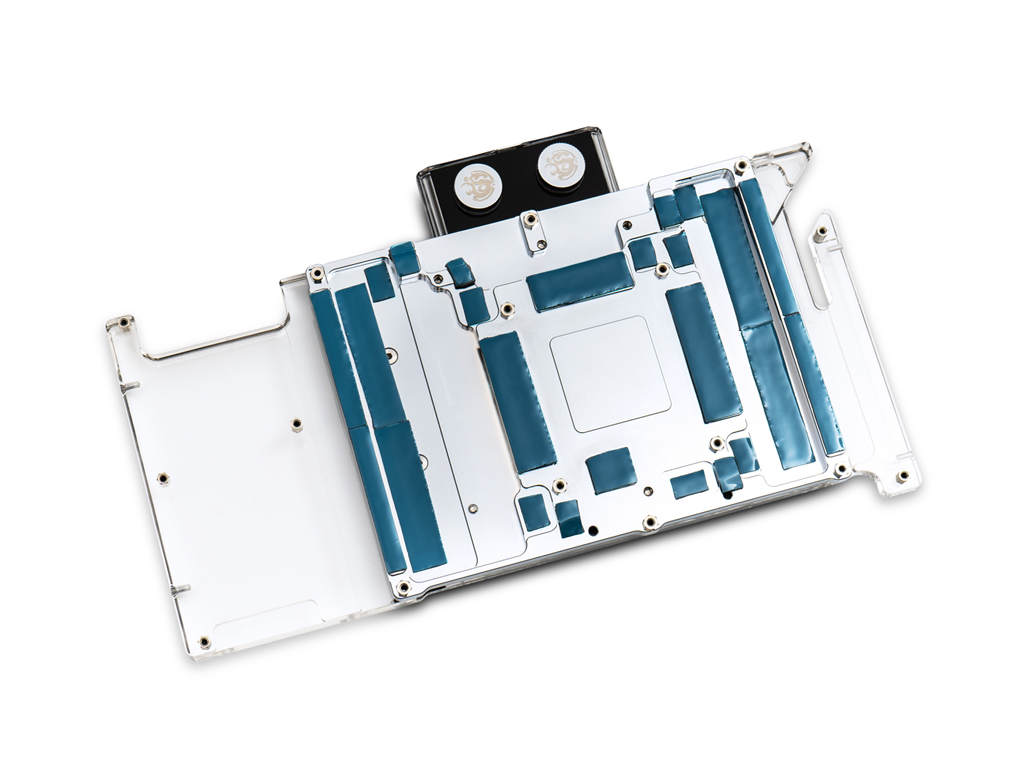

Covering the full length of the card, the water block is layered with a nickel and chromium plated copper base plate that is meticulously carved to allocate the most contact over the GPU and VRM area. Moreover, the water block is covered by an acrylic top layer equipped with a Bitspower Digital RGB LED strip that is sure to make your system look amazing.

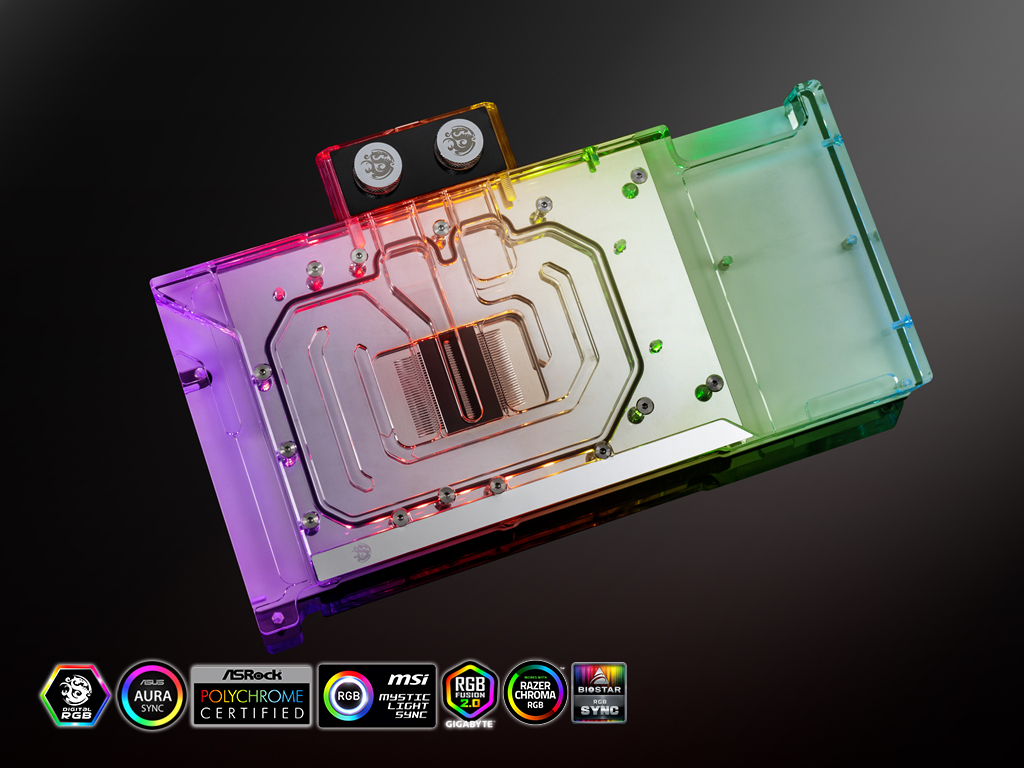

Bitspower Nebula VGA Water Block for GALAX GeForce RTX 4090 HOF for GALAX GeForce RTX 4090 HOF series is sure to become the center of attention of your case with bright LEDs that are certified by ASUS AURA Sync, GIGABYTE RGB Fusion 2.0, MSI Mystic Light Sync, ASRock Polychrome, BIOSTAR VIVID LED DJ and Razer Chroma.

Thread : G1/4" x 4

LED Color : Digital RGB

LED Strip Management By Bitspower Digital RGB And Certified By ASUS AURA Sync, GIGABYTE RGB Fusion, MSI Mystic Light Sync, ASRock Polychrome, BIOSTAR VIVID LED DJ and Razer Chroma.

Included :
1set of VGA Water Block for GALAX GeForce RTX 4090 HOF
1set of Mounting Screws/Accessories

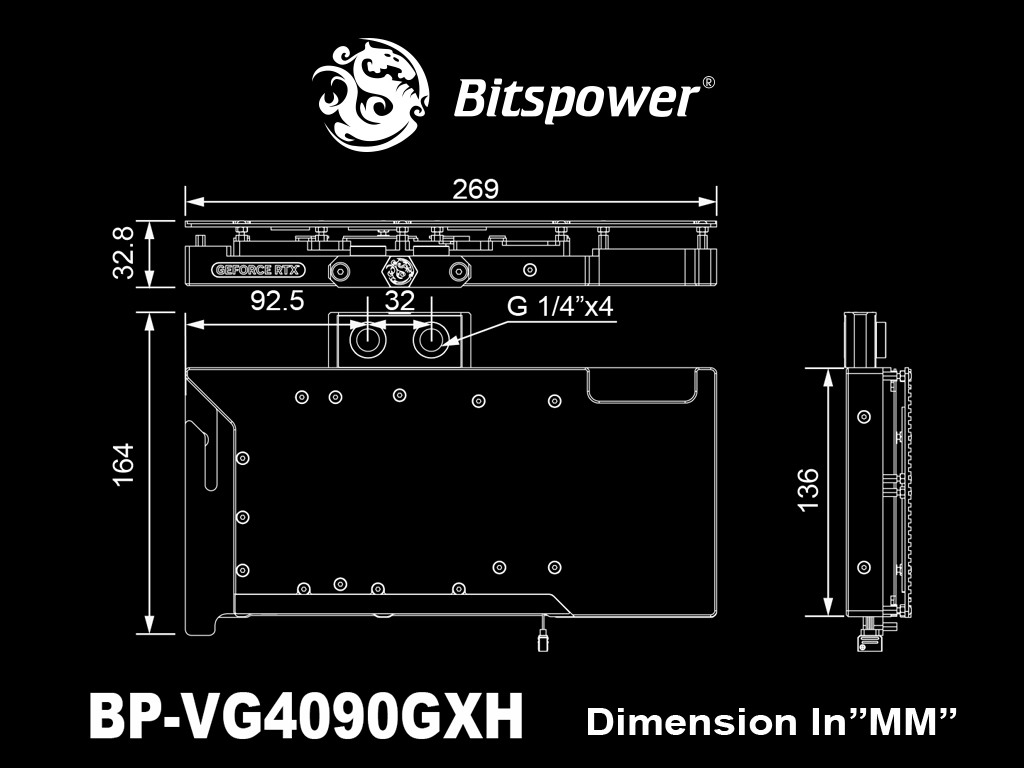

Dimension(LxWxH) : 269x164x32.8 MM

Brand	Product
GALAX	GeForce RTX 4090 HOF OC
GALAX	GALAX	GeForce RTX 4090 HOF OC Plus

If there aren’t enough DRGB headers on the motherboard, you can use the "Bitspower Touchaqua Digital RGB Multi Function Controller", which is available for purchase via the link below:
https://shop.bitspower.com/index.php?route=product/product&product_id=7822

I wanna show off, but what's the support I'd need?

◆DRGB

The end of power supply is 3PIN. The sequence is +/D/↓ (some motherboards are shown +5V/D/↓, and the plug is like 4PIN but the 3rd PIN is empty). Please plug in the corresponding direction of motherboard, controller or the wire integrator for one to many. If choosing the motherboard as the power supply, the light effect can be synchronize with MB.

*** Bitspower reserves the right to change the product design and interpretations. These are subject to change without notice. Product colors and accessories are based on the actual product. ***

*** From 15th March 2018, all of our installation guides will be provided electronically via an easy-to-use QR code attached to the packaging. ***

*** Before filling in the water, please make sure all the components are installed correctly. To prevent any leakage which may damage the PC components, please perform a 24-hour leaking test with only the pump connected to the power supply. ***

*** When using the leak tester on a water cooling loop, in order to avoid product damage due to excessive pressure, the input pressure should not exceed 0.5kg/cm2 (bar), and do not over 30 second. The leak tester must not be used when there is water in the loop or when the pump is running. If the product is damaged due to excessive pressure or incorrect use, Bitspower's product warranty will be null and void, and the cost of any damage to the hardware will be borne by the customer. ***
