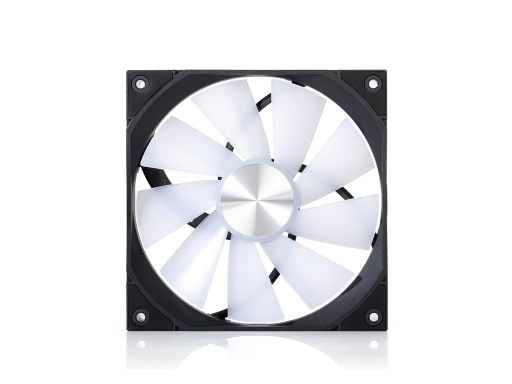

Bitspower Griffin 1415NBD - 140mm Black DRGB 1500 RPM Normal Flow Fan

◆ The Next-Generation Bitspower Griffin 140mm Series ◆

Take complete control over your system’s airflow and aesthetics with the newest evolution of the Bitspower Griffin fan family. Engineered for peak performance and unparalleled flexibility, the next generation of Griffin 140mm fans delivers the cooling power your loop demands, exactly the way you want it.



◆ Tailored Performance for Every Build ◆

Whether you are prioritizing whisper-quiet operation or maximum static pressure for thick radiators, the new Griffin lineup has you covered. Choose the 1500 RPM (1415 Series) for a perfectly balanced, low-noise profile, or step up to the 1800 RPM (1418 Series) when your custom loop requires that extra punch of cooling power.



◆ Flawless Aesthetics with Reverse Flow Options ◆

Stop compromising your build's look for the sake of airflow. The Griffin series now features both Normal (N) and Reverse (R) flow configurations. With the Reverse flow models, you can mount your fans as intakes on the bottom or side panels of your chassis while displaying the clean, unobstructed front face of the fan blades—keeping your airflow path optimized while keeping the ugly structural struts hidden.



◆ Customize Your Vibe ◆

Match your rig perfectly with a full matrix of aesthetic choices:

。 Color Matching: Available in sleek Black (B) or pristine White (W) to seamlessly blend with your hardware theme.

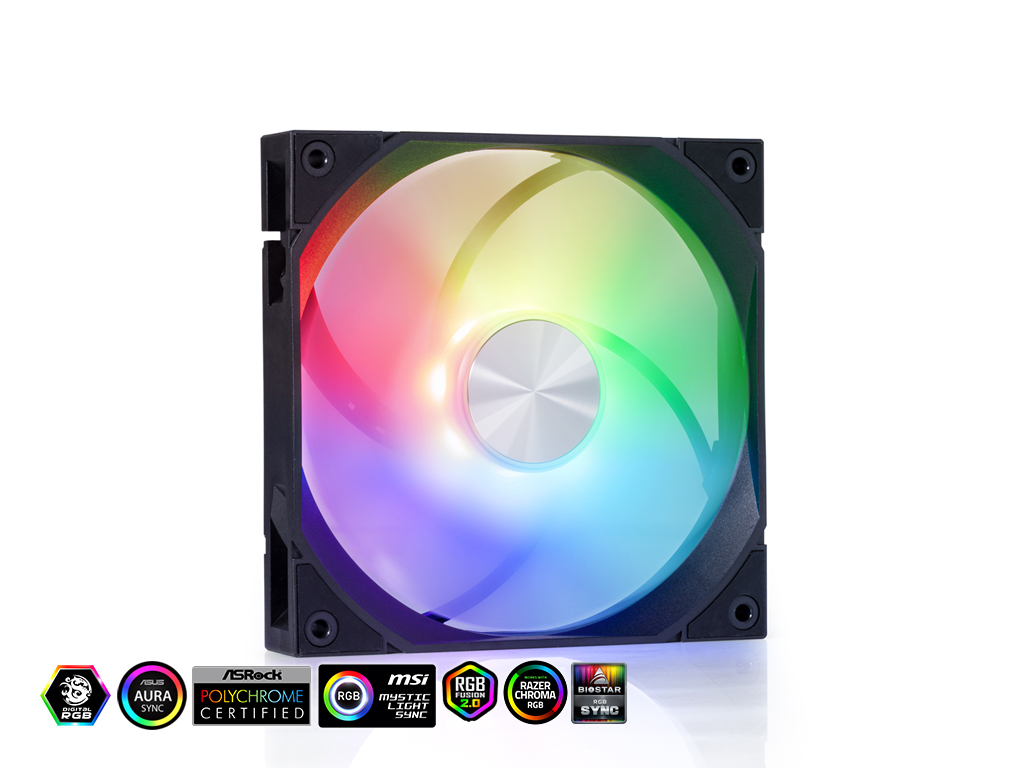

。 Brilliant Lighting: Go for the vibrant Digital RGB (DRGB) models to synchronize stunning lighting effects across your system, or choose the non-RGB variants for a clean, stealthy blackout look.



Upgrade your cooling ecosystem with the new standard in versatility. The Bitspower Griffin 140mm series—built for builders who refuse to compromise.

Specifications
Measurements 140x140x25 mm
Air Flow 86.21 CFM / 146.47 CMH (m³/h) (Max.)
Air Pressure 2.19 mm-H₂O (Max.)
Noise Level 34.0 dBA (Max.)
Operating Voltage Fan: 5V ~ 13.2V / LED: 5V
Rated Current Fan: 0.24A (Max.) / LED: 0.25A (Max.)
Rated Power Fan: 2.88W (Max.) / LED: 1.25W (Max.)
Fan Speed 1500 ± 10% RPM (Max.)
Bearing Type FDM Bearing


*** Bitspower reserves the right to change the product design and interpretations. These are subject to change without notice. Product colors and accessories are based on the actual product. ***
*** From 15th March 2018, all of our installation guides will be provided electronically via an easy-to-use QR code attached to the packaging. ***
*** Before filling in the water, please make sure all the components are installed correctly. To prevent any leakage which may damage the PC components, please perform a 24-hour leaking test with only the pump connected to the power supply. ***
*** When using the leak tester on a water cooling loop, in order to avoid product damage due to excessive pressure, the input pressure should not exceed 0.5kg/cm2 (bar), and do not over 30 second. The leak tester must not be used when there is water in the loop or when the pump is running. If the product is damaged due to excessive pressure or incorrect use, Bitspower's product warranty will be null and void, and the cost of any damage to the hardware will be borne by the customer. ***
Last updated : 2026-10-02

Write a review

Please login or register to review

Bitspower Griffin 1415NBD - 140mm Black DRGB 1500 RPM Normal Flow Fan

  • Brand: Bitspower
  • Product Code: BPA-GF1415-BK-DRGB
  • UPC: 885488072721
  • EAN: 4712914792723
  • Availability: In Stock
  • TWD 660 ( Tax excl. )
