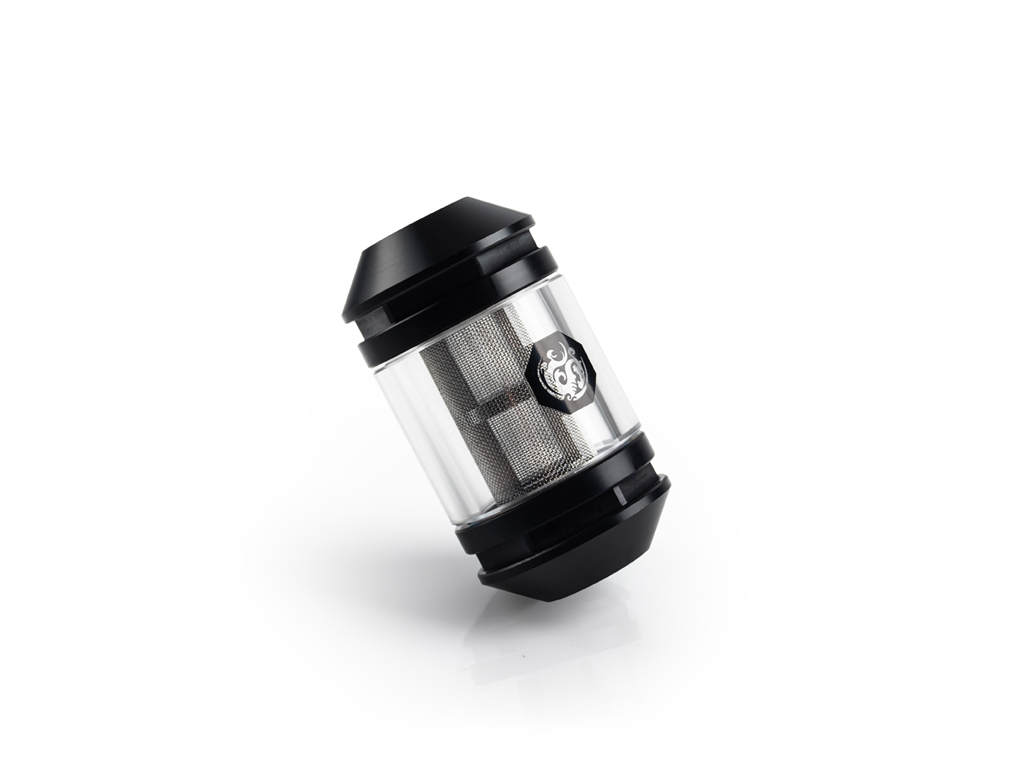

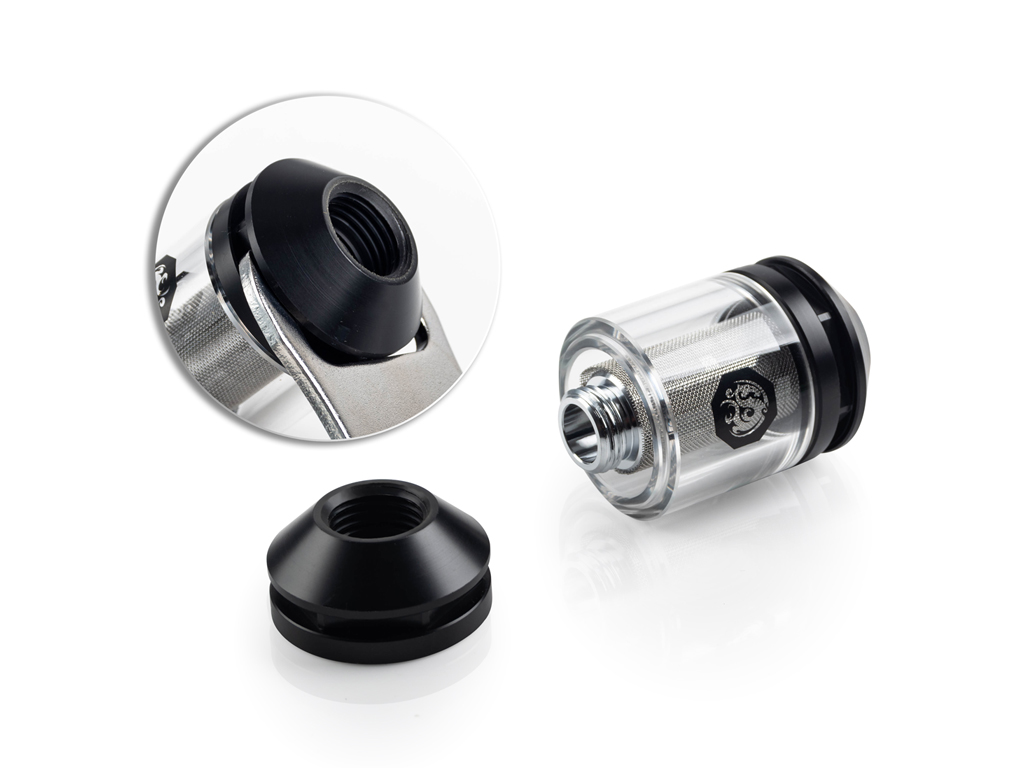

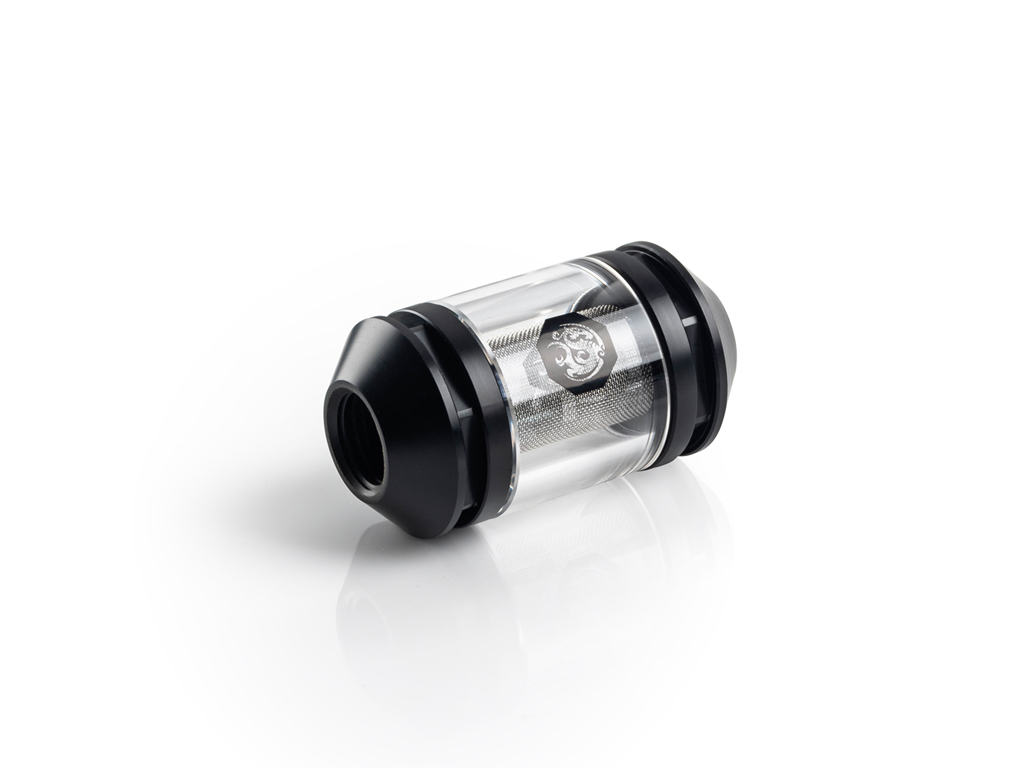

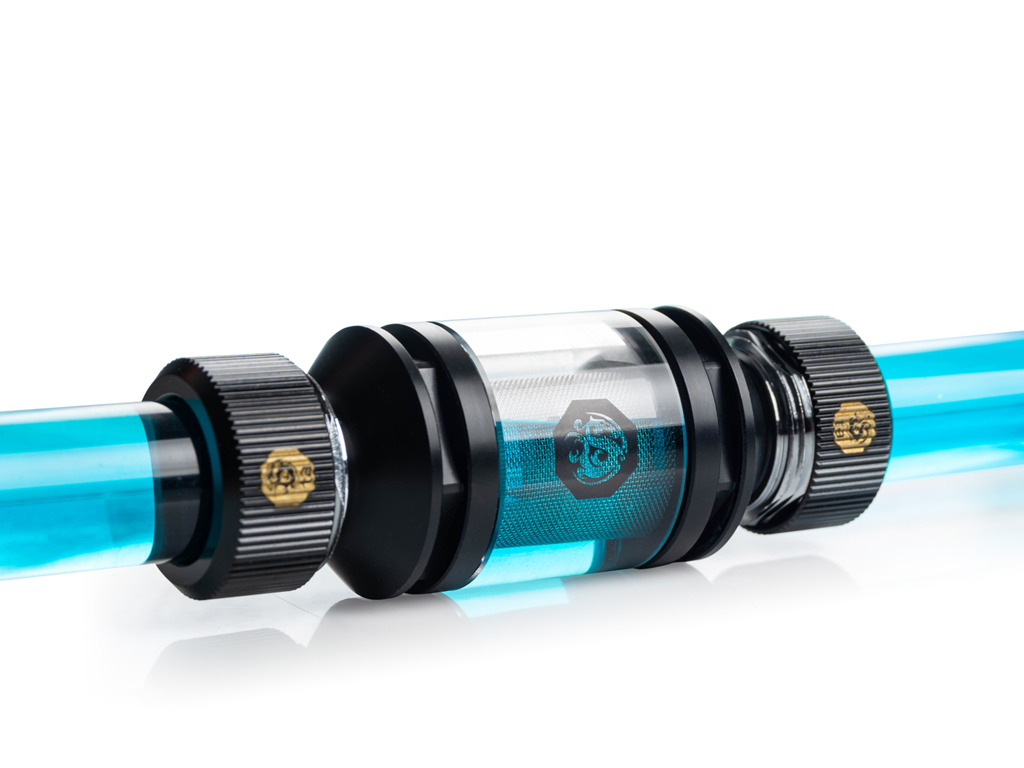

Bitspower In-Line Filter

Features:
1. Whole new design.
2. Uniquely designed filter having better effect.
3. Fine acrylic tube with high transparent brightness. Durable and easy to clean.
4. Hi-quality material.
5. RoHS compliant.

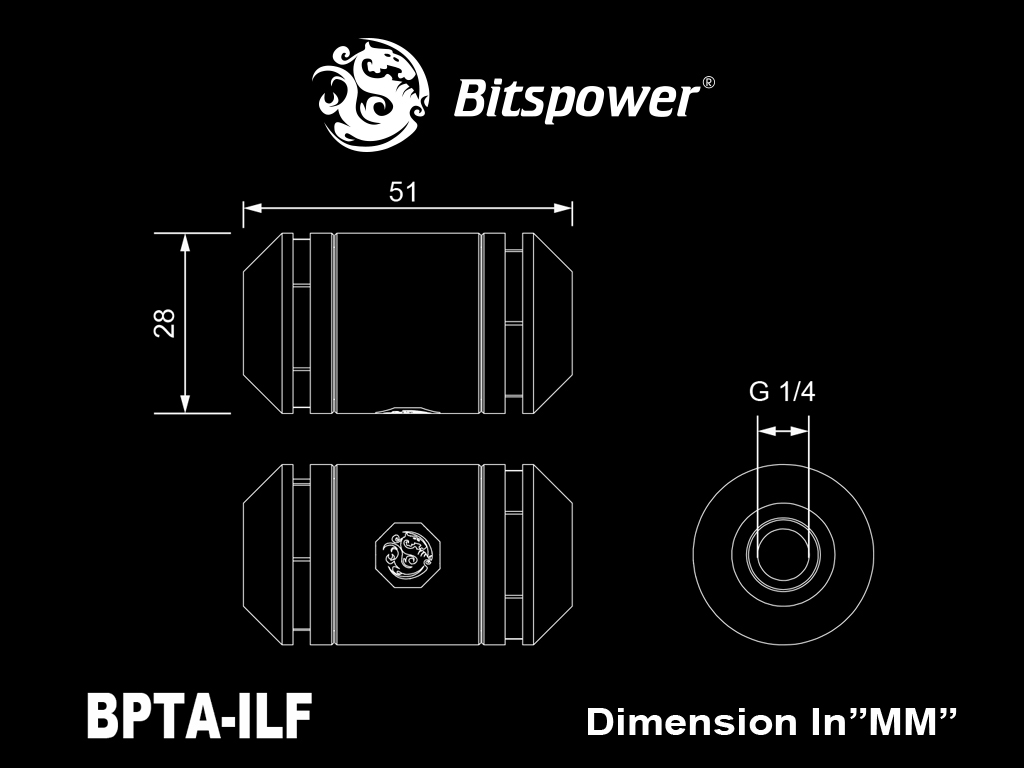

Threads: IG1/4" X 2

If there aren’t enough DRGB headers on the motherboard, you can use the "Bitspower Digital RGB Multi Function Controller", which is available for purchase via the link below:
https://shop.bitspower.com/index.php?route=product/product&product_id=7822

I wanna show off, but what's the support I'd need?

◆DRGB

The end of power supply is 3PIN. The sequence is +/D/↓ (some motherboards are shown +5V/D/↓, and the plug is like 4PIN but the 3rd PIN is empty). Please plug in the corresponding direction of motherboard, controller or the wire integrator for one to many. If choosing the motherboard as the power supply, the light effect can be synchronize with MB.



*** Bitspower reserves the right to change the product design and interpretations. These are subject to change without notice. Product colors and accessories are based on the actual product. ***
*** From 15th March 2018, all of our installation guides will be provided electronically via an easy-to-use QR code attached to the packaging. ***
*** Before filling in the water, please make sure all the components are installed correctly. To prevent any leakage which may damage the PC components, please perform a 24-hour leaking test with only the pump connected to the power supply. ***
*** When using the leak tester on a water cooling loop, in order to avoid product damage due to excessive pressure, the input pressure should not exceed 0.5kg/cm2 (bar), and do not over 30 second. The leak tester must not be used when there is water in the loop or when the pump is running. If the product is damaged due to excessive pressure or incorrect use, Bitspower's product warranty will be null and void, and the cost of any damage to the hardware will be borne by the customer. ***
Last updated : 2025-08-26 17:05:34

Write a review

Please login or register to review

Bitspower In-Line Filter

  • Brand: Bitspower
  • Product Code: BPTA-ILF
  • UPC: 885488066386
  • EAN: 4712914786388
  • Availability: In Stock

  • TWD 450 ( Tax excl. )
