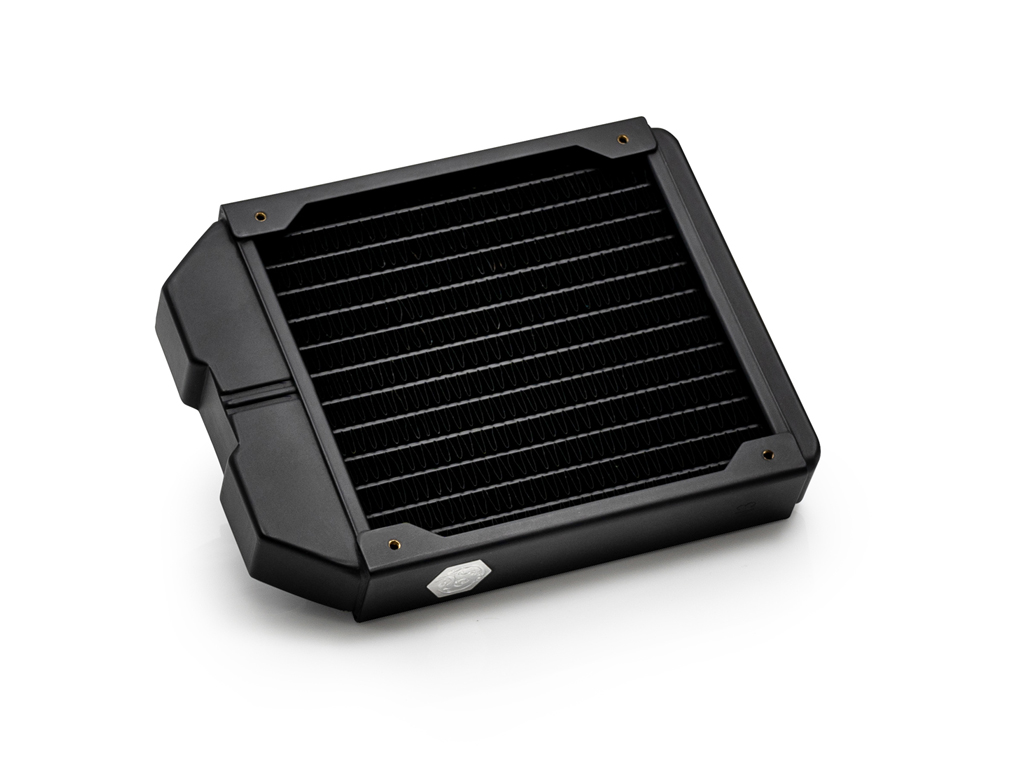

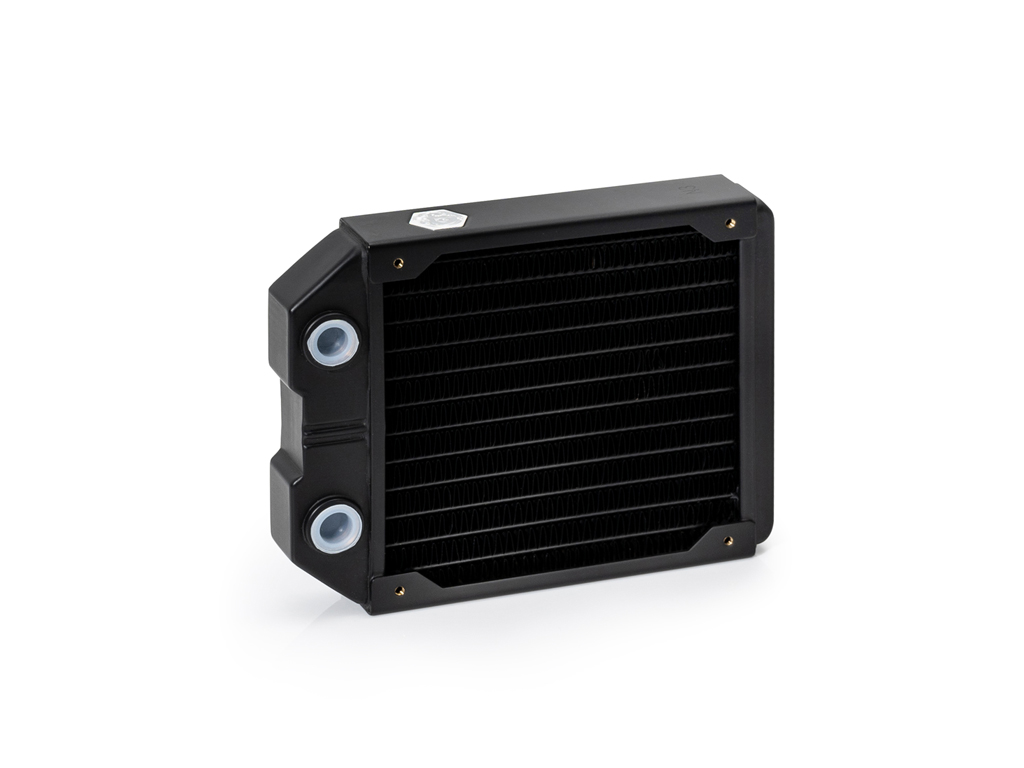

Bitspower Leviathan II 120 Radiator with Single Wave Fins (Thickness 27mm)

A key component of water cooling loops, the Bitspower Leviathan II 120 Radiator can be equipped with fans (fans are sold separately), which is helpful for effective heat dissipation.

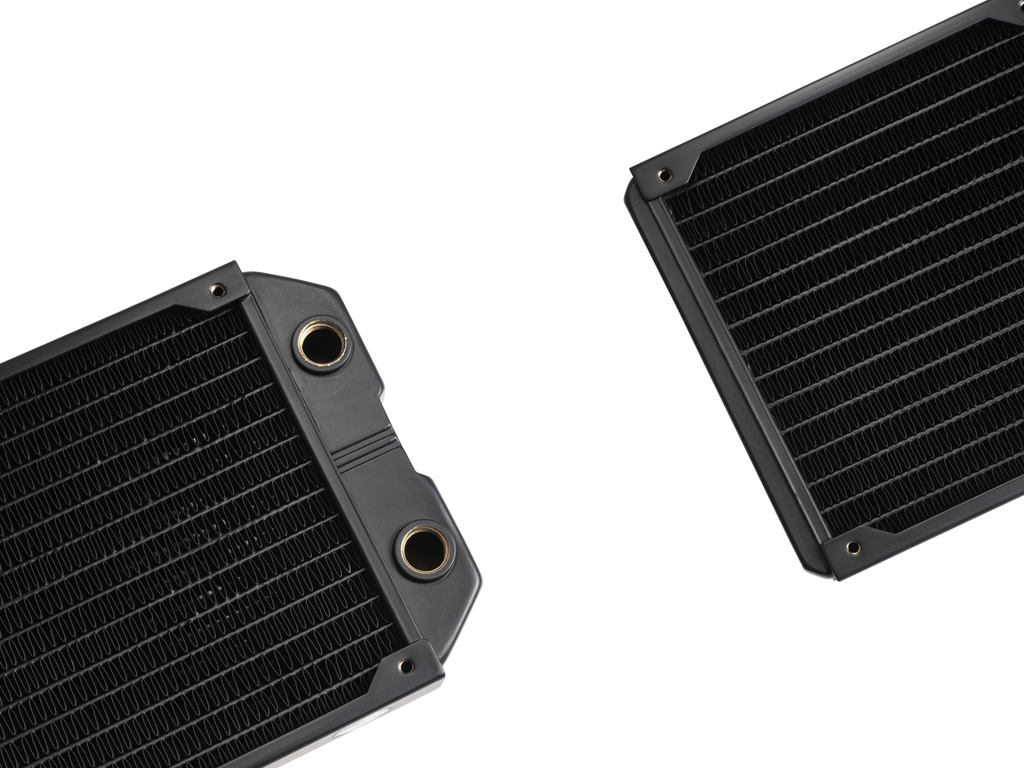

The radiator is made of copper which has high thermal conductivity. Concise wave-shaped heat dissipation fins, greatly increase the heat dissipation area. Used with fans, it will effectively dissipate heat from the water cooling loop, and reduce the water temperature.

Thread : G1/4" x 2

Included :
1set of BPN-RL2122SL
1set of Mounting Screws

FPI (Fins Per Inch): 17
Fins type: Single wave fins

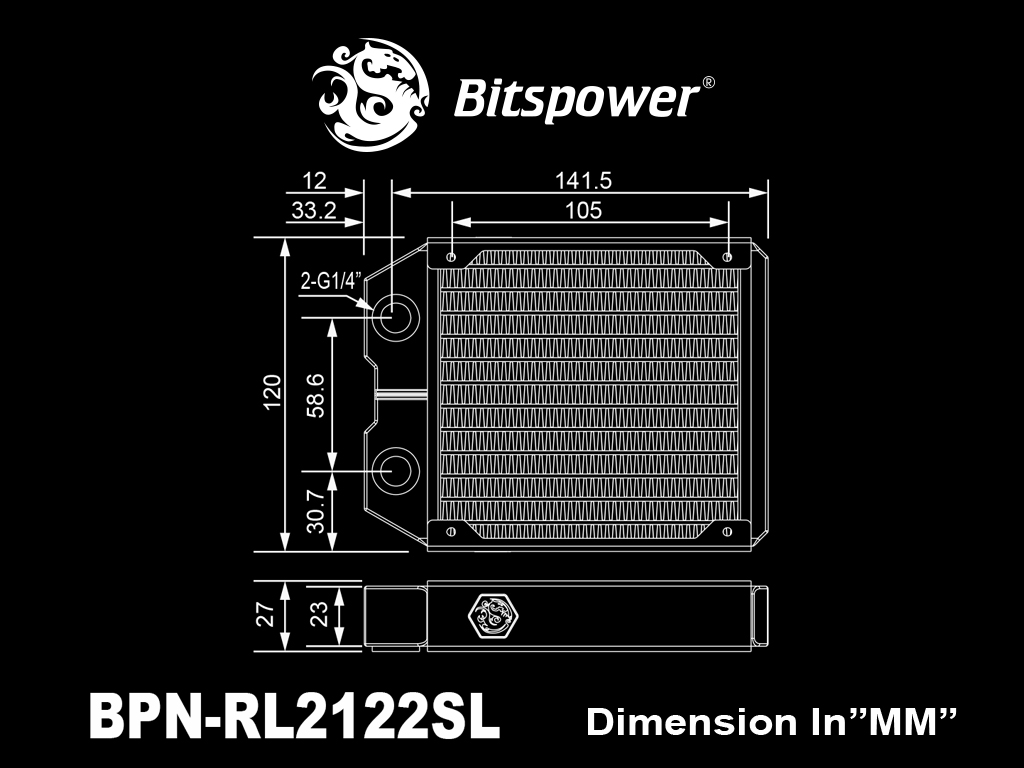

Dimension(LxWxH) : 153.5x120x27 MM

*** Bitspower reserves the right to change the product design and interpretations. These are subject to change without notice. Product colors and accessories are based on the actual product. ***

*** From 15th March 2018, all of our installation guides will be provided electronically via an easy-to-use QR code attached to the packaging. ***

*** Before filling in the water, please make sure all the components are installed correctly. To prevent any leakage which may damage the PC components, please perform a 24-hour leaking test with only the pump connected to the power supply. ***

*** When using the leak tester on a water cooling loop, in order to avoid product damage due to excessive pressure, the input pressure should not exceed 0.5kg/cm2 (bar), and do not over 30 second. The leak tester must not be used when there is water in the loop or when the pump is running. If the product is damaged due to excessive pressure or incorrect use, Bitspower's product warranty will be null and void, and the cost of any damage to the hardware will be borne by the customer. ***
