Bitspower CPU Block Summit M Pro with OLED (12th,13th,14th,15th Gen Intel CPU,LGA1700,1851)

Bitspower Summit M Pro OLED is an efficient solution for Intel and AMD CPU water cooling. It equipped with a digital thermal sensor and a OLED display . Including brackets and accessories for Intel and AMD platforms, this CPU block is all you’ll need to keep your processor from overheating.

In order to make heat exchange as efficient as possible, The copper base plate can effectively dissipate heat. Then, the Bitspower water injection design also brings a high flow of coolant, making cooling as efficient as possible.

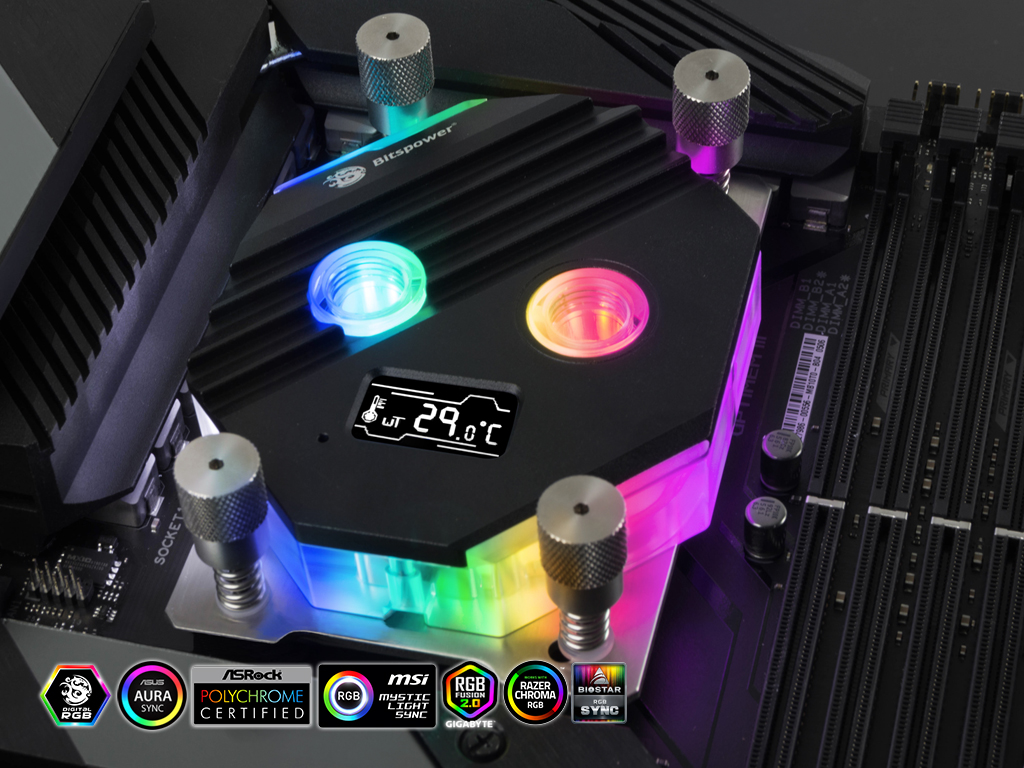

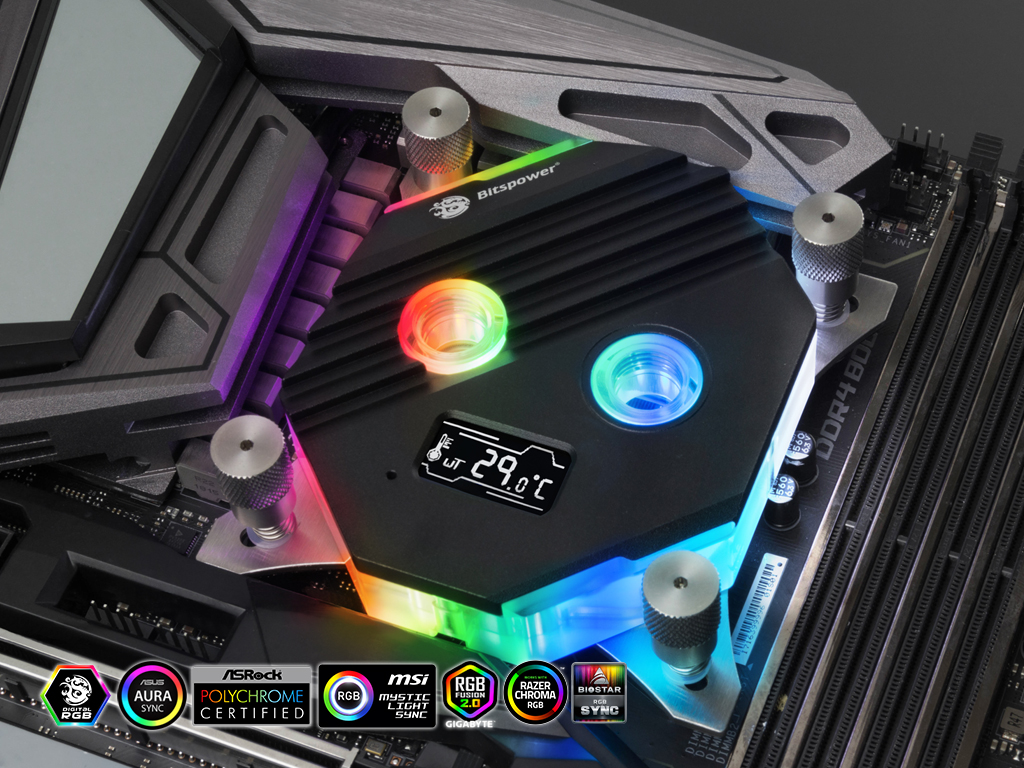

The Summit M Pro OLED, equipped with Bitspower Digital RGB around the top plate, is sure to become the center of attention of your case with bright LEDs that are certified by ASUS AURA Sync, GIGABYTE RGB Fusion2.0, MSI Mystic Light Sync, and ASRock Polychrome.



Thread : G1/4" x 2

Compatible with Intel 12th, 13th, 14th,
and 15th Generation (Intel Core Ultra) CPUs, LGA1700,1851.



LED Color : Digital RGB
LED Strip Management By Bitspower Digital RGB And Certified By ASUS AURA Sync, GIGABYTE RGB Fusion, MSI Mystic Light Sync, ASRock Polychrome and Razer Chroma.

Digit thermal sensor

Input Voltage : DC 5V~12V
Temperature : 0~99°C(32~210.2°F)
operate current : <20ma

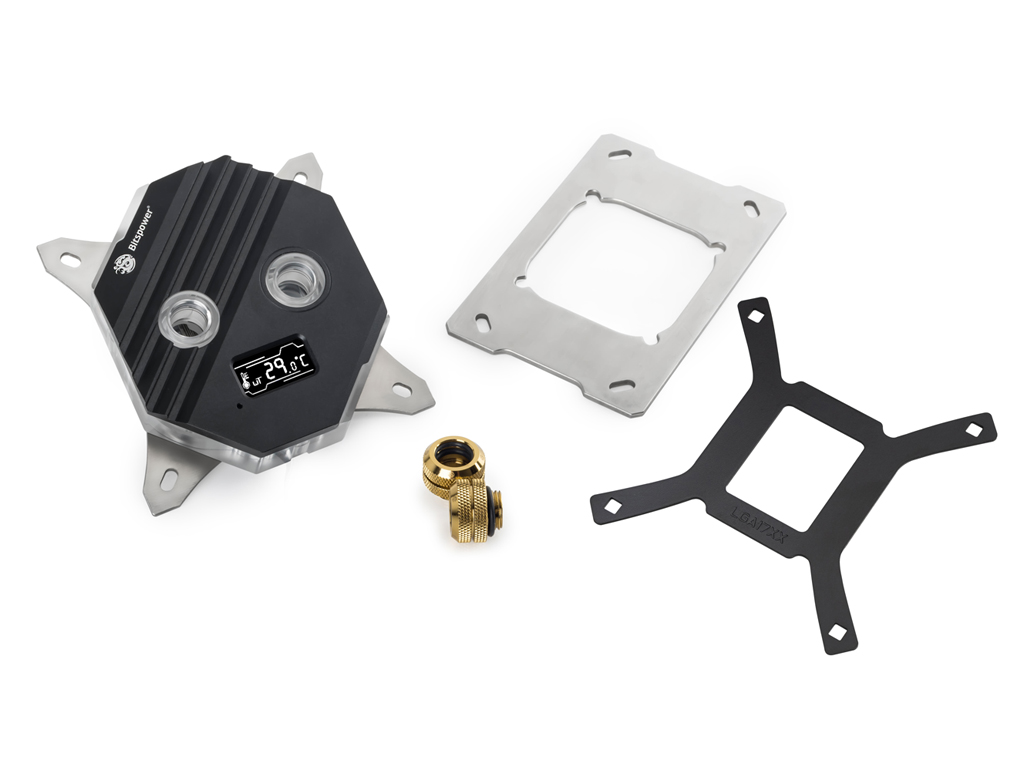

Included :
2Set of G1/4" True Brass Enhance Multi-Link For OD 12MM 1Pcs of AM4 Bracket
1set of CPU Block Summit MS Mounting Kit for LGA 17001Set of CPU backplate
1Set of CPU backplate (AMD4)
1 Set of BPA-TP1 thermal compound (2.5G)
1Set of Mounting Screws/Accessories

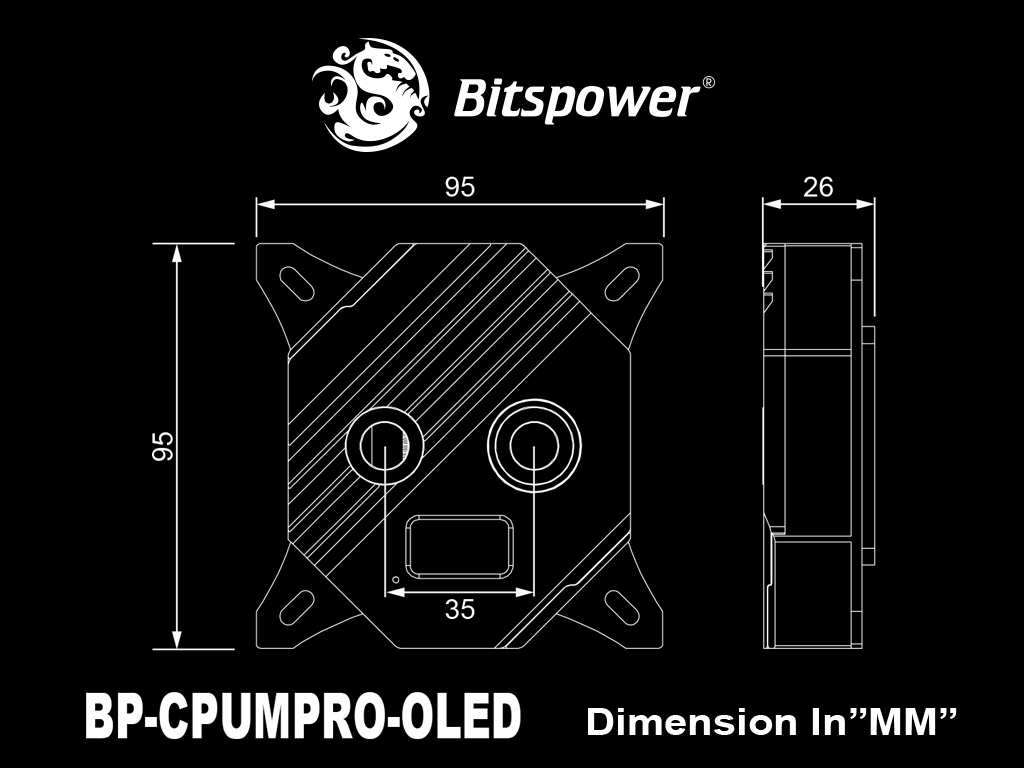

Dimension(LxWxH) : 95x95x26 MM

BrandProduct
INTELLGA 1851
INTELLGA 1700
INTELLGA 1200
AMDSOCKET AM4

If there aren’t enough DRGB headers on the motherboard, you can use the "Bitspower Touchaqua Digital RGB Multi Function Controller", which is available for purchase via the link below:
https://shop.bitspower.com/index.php?route=product/product&product_id=7822

I wanna show off, but what's the support I'd need?

◆DRGB

The end of power supply is 3PIN. The sequence is +/D/↓ (some motherboards are shown +5V/D/↓, and the plug is like 4PIN but the 3rd PIN is empty). Please plug in the corresponding direction of motherboard, controller or the wire integrator for one to many. If choosing the motherboard as the power supply, the light effect can be synchronize with MB.



*** Bitspower reserves the right to change the product design and interpretations. These are subject to change without notice. Product colors and accessories are based on the actual product. ***
*** From 15th March 2018, all of our installation guides will be provided electronically via an easy-to-use QR code attached to the packaging. ***
*** Before filling in the water, please make sure all the components are installed correctly. To prevent any leakage which may damage the PC components, please perform a 24-hour leaking test with only the pump connected to the power supply. ***
*** When using the leak tester on a water cooling loop, in order to avoid product damage due to excessive pressure, the input pressure should not exceed 0.5kg/cm2 (bar), and do not over 30 second. The leak tester must not be used when there is water in the loop or when the pump is running. If the product is damaged due to excessive pressure or incorrect use, Bitspower's product warranty will be null and void, and the cost of any damage to the hardware will be borne by the customer. ***
Last updated : 2024-11-01 17:00:13
