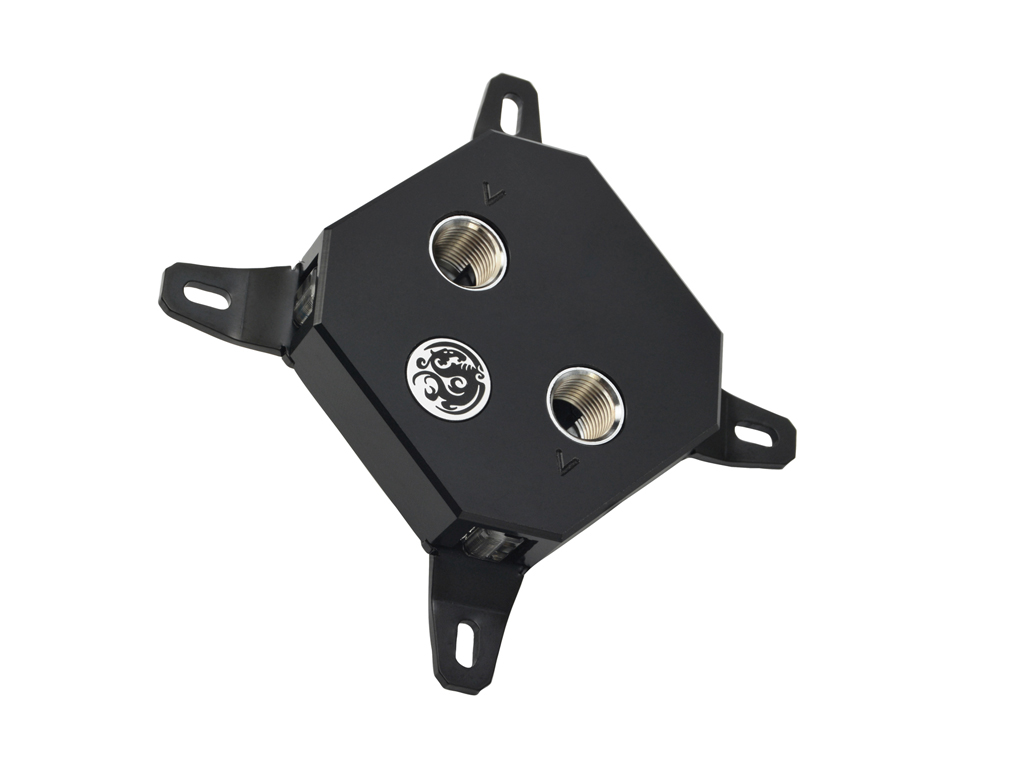

Bitspower CPU Block Summit ES Intel Edition (12th,13th,14th,15th Gen Intel CPU,LGA1700,1851)

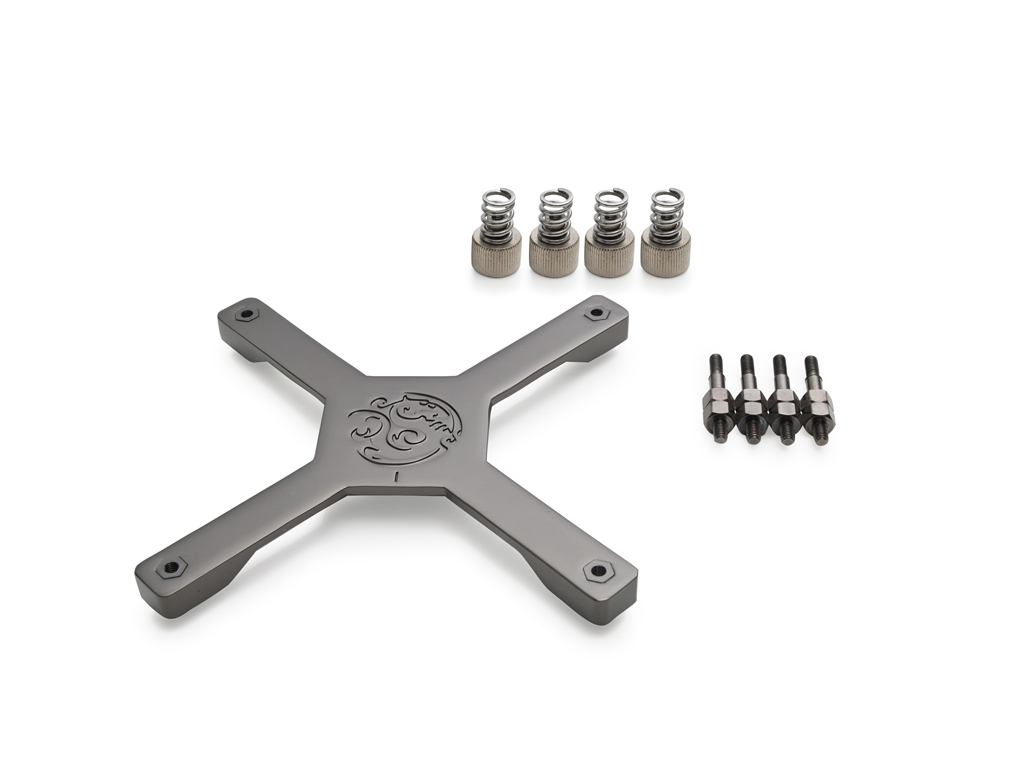

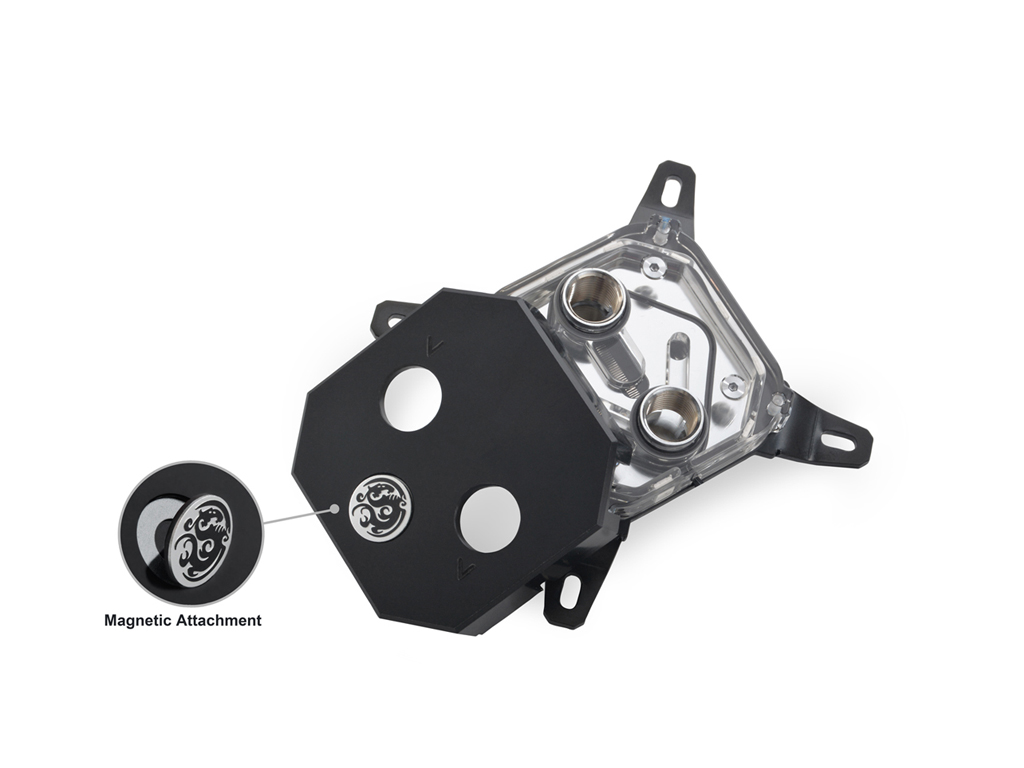

The Bitspower CPU Block Summit ES not only provides excellent heat dissipation performance, but also features an eye-catching exterior design. When assembled with its dedicated mounting bracket, this CPU water block can effectively dissipates heat. With a stylish minimalist POM material top cover, this CPU water block will bring a unique accent to your rig.

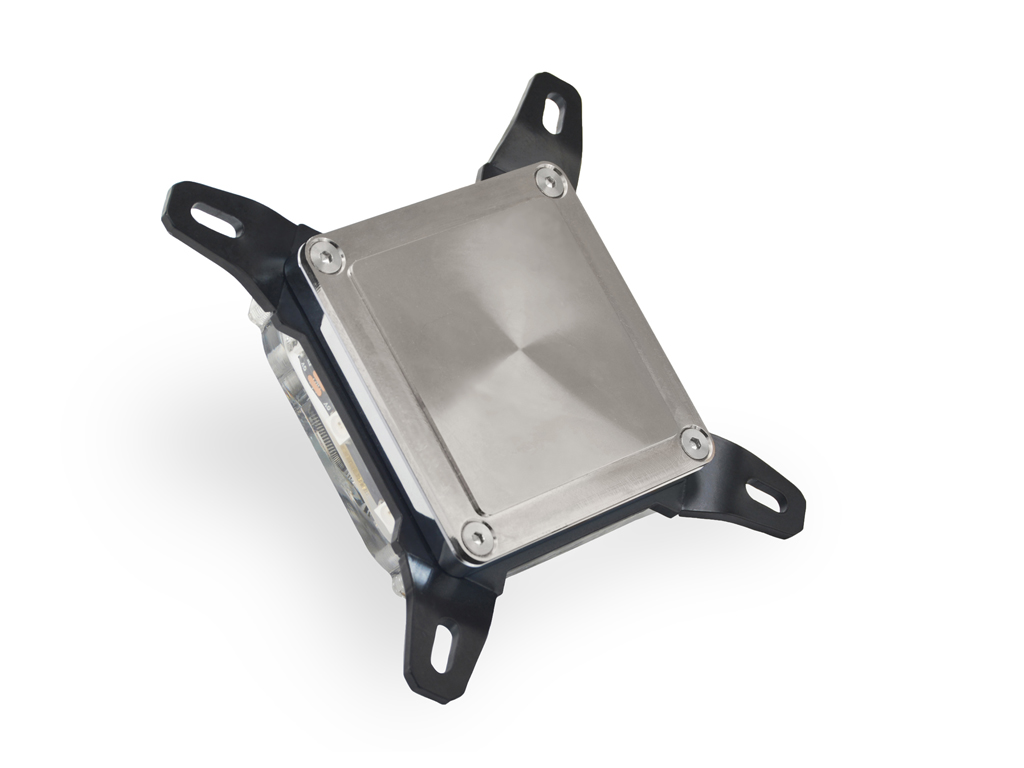

To maximize heat exchange efficiency, the fins on the copper base are carefully designed to increase the efficiency of water flow, which is crucial for heat dissipation. Thanks to the water jetting design, high-flow coolant directly impacts the fins, rapidly carrying away the heat source. This design significantly enhances heat dissipation performance, reducing the temperature of the CPU during high-speed computing.

Compatible with Intel 12th, 13th, 14th,
and 15th Generation (Intel Core Ultra) CPUs, LGA1700,1851.

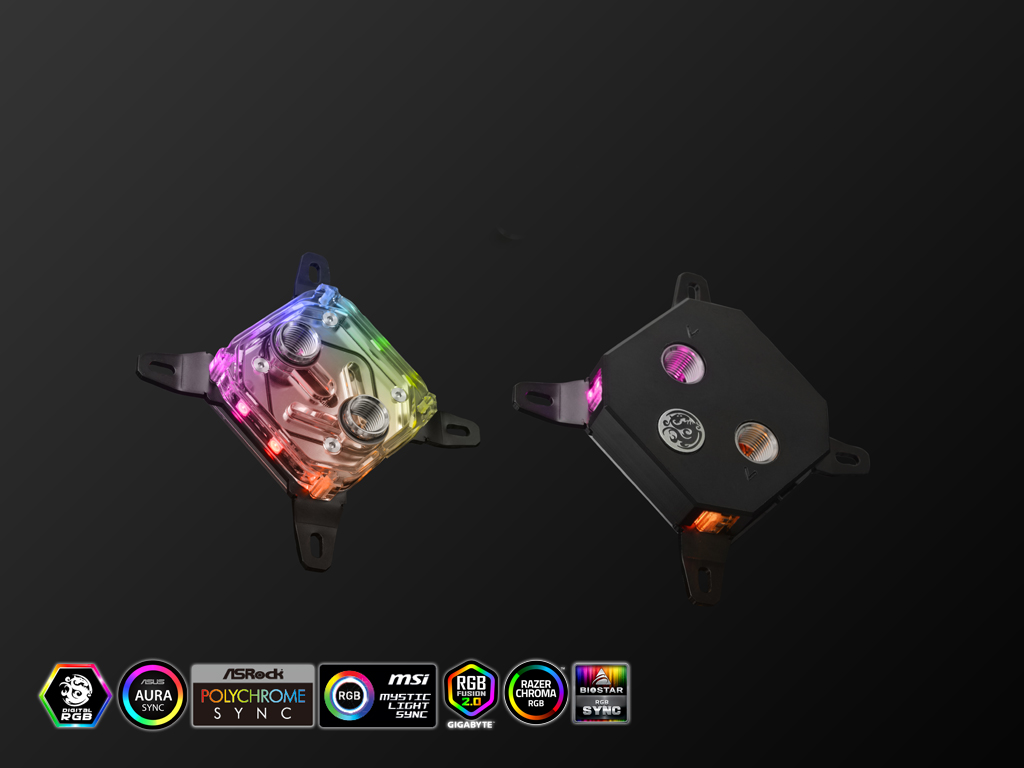

LED Color : Digital RGB

LED Strip Management By Bitspower Digital RGB And Certified By ASUS AURA Sync, GIGABYTE RGB Fusion, MSI Mystic Light Sync, ASRock Polychrome, BIOSTAR VIVID LED DJ and Razer Chroma.

Dimension(LxWxH) : 95x95x24.7 MM

If there aren’t enough DRGB headers on the motherboard, you can use the "Bitspower Touchaqua Digital RGB Multi Function Controller", which is available for purchase via the link below:
https://shop.bitspower.com/index.php?route=product/product&product_id=7822

I wanna show off, but what's the support I'd need?

◆DRGB

The end of power supply is 3PIN. The sequence is +/D/↓ (some motherboards are shown +5V/D/↓, and the plug is like 4PIN but the 3rd PIN is empty). Please plug in the corresponding direction of motherboard, controller or the wire integrator for one to many. If choosing the motherboard as the power supply, the light effect can be synchronize with MB.
